The Story

Breaking Boundaries

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

Where it thrives

Challenging trails, Up and down hills, Out in the elements

What it's built for

Handling, Traction, Efficiency, Durability

Highlights

  • Proportional Response Tuned carbon frame / RockShox Lyrik Select fork, 150mm travel
  • Bosch SmartSystem - 750wh battery & Performance CX motor
  • Shimano XTR/XT 12-speed drivetrain



Specs

DETAILS

  • Platform
    Moterra Neo
  • Model Name
    Moterra Carbon 1
  • Model Code
    C25172U

FRAMESET

  • Frame
    Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
  • Fork
    RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
  • Headset
    Acros integrated sealed bearing, tapered
  • Rear Shock
    RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

E-SYSTEM

  • Drive Unit
    Bosch Performance Line CX 250W
  • Battery
    Bosch PowerTube, 750Wh
  • Charger
    Bosch 4A
  • Display
    Bosch Kiox 300 w/ LED remote
  • Certifications
    UL 2849

DRIVETRAIN

  • Rear Derailleur
    Shimano XT
  • Shifters
    Shimano XT, 12-speed
  • Chain
    Shimano XT, 12-speed
  • Crank
    FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • Rear Cogs
    Shimano XT, 10-51, 12-speed

BRAKES

  • Brakes
    Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors
  • Brake Levers
    Shimano XT hydraulic disc

WHEELS

  • Rims
    WTB KOM Trail i30 TCS, 32h, tubeless ready
  • Spokes
    DT Swiss Champion
  • Tire Size
    2.6
  • Wheel Size
    29
  • Hubs
    (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
  • Tires
    (F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
  • Front Tire
    Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
  • Rear Tire
    Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready

COMPONENTS

  • Handlebar
    HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
  • Stem
    Cannondale 2, 6061 Alloy, 35mm, 0°
  • Grips
    Fabric FunGuy
  • Saddle
    Fabric Scoop Shallow Elite, cro-mo rails
  • Seatpost
    Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)

EXTRA

  • Extra 1
    Lezyne Super HB E1000 w/ remote high beam switch

PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Geometry

Moterra Carbon 1 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

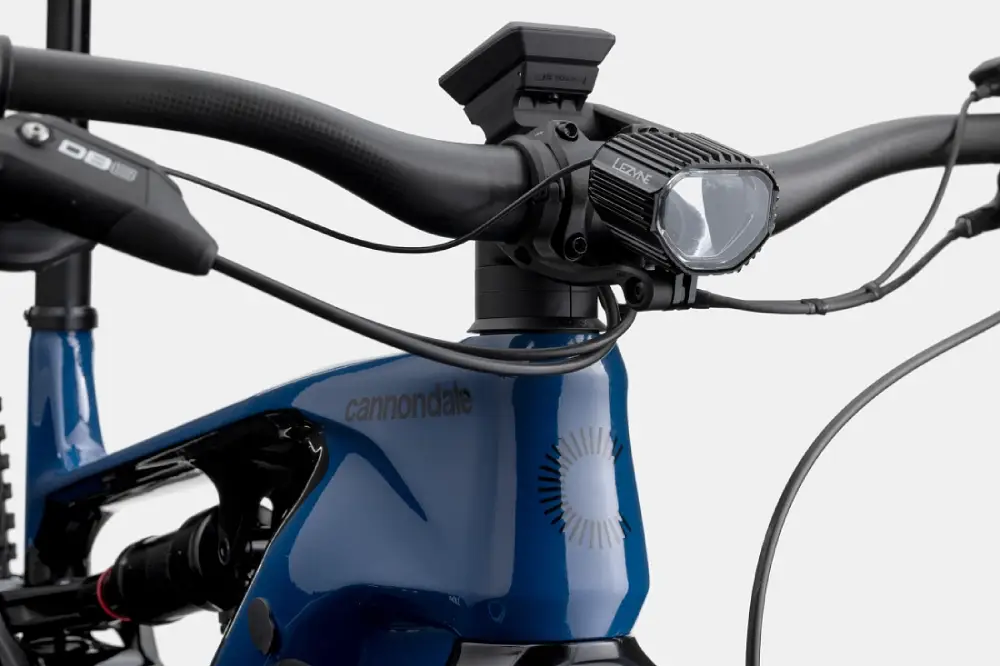

Moterra Carbon 1 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

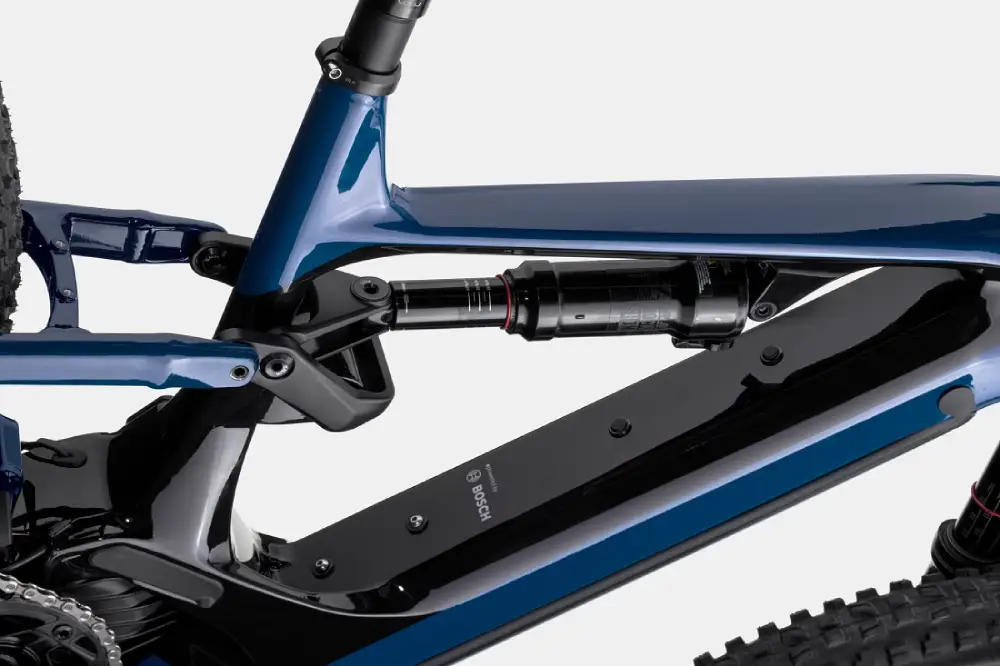

Moterra Carbon 1 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

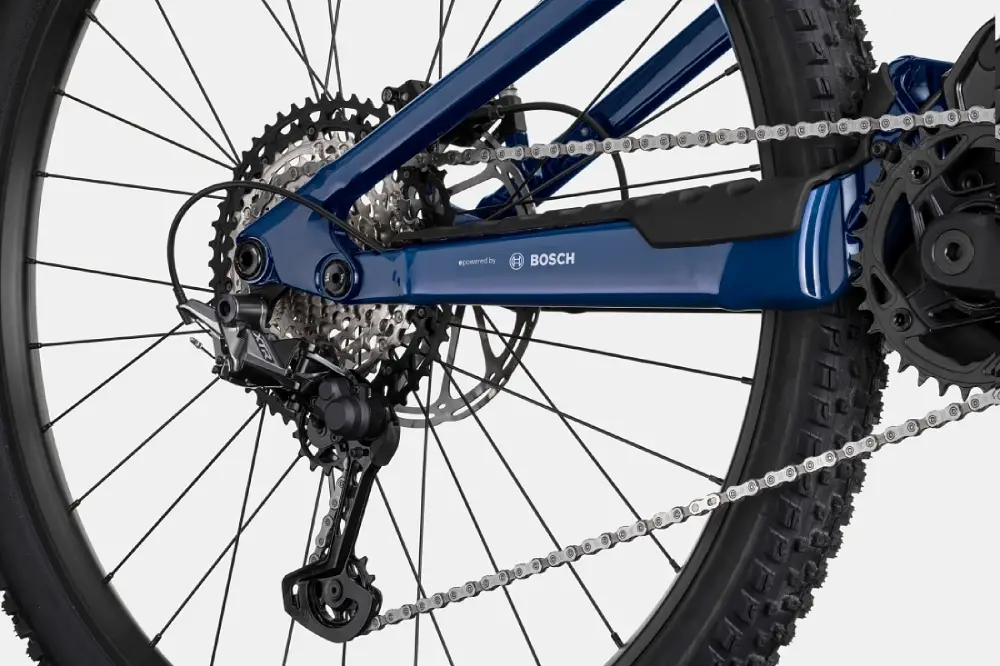

Moterra Carbon 1 - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

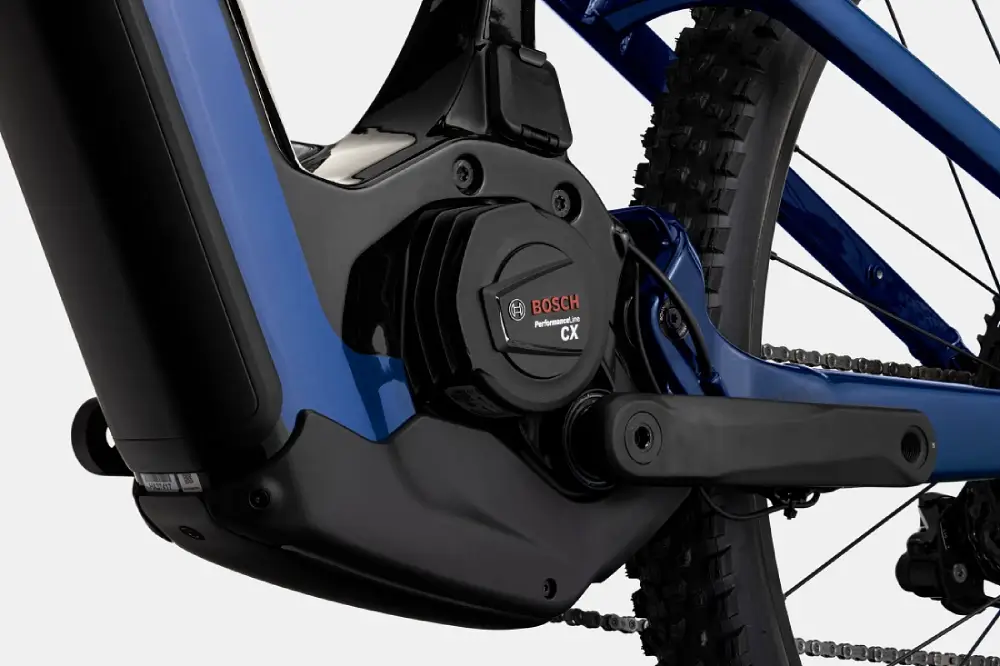

Moterra Carbon 1 - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

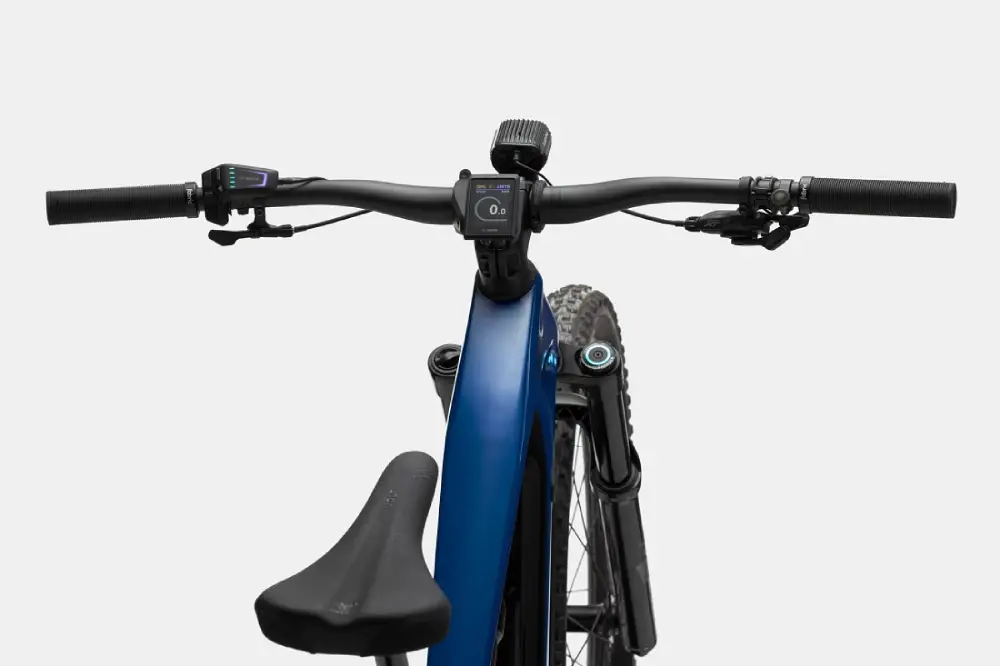

Moterra Carbon 1 - Image 7
