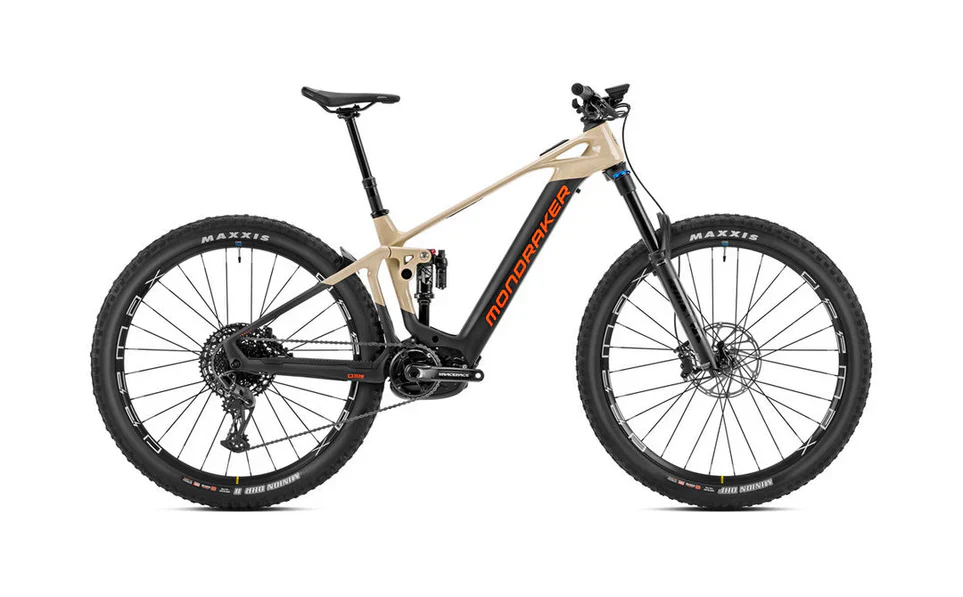

Mondraker Crafty Carbon RR - Carbon/Grey/Orange
HomeStore

Mondraker Crafty Carbon RR - Carbon/Grey/Orange

Mondraker Crafty Carbon RR - Carbon/Grey/Orange

$2,386.59

Original: $7,955.29

-70%
Mondraker Crafty Carbon RR - Carbon/Grey/Orange—

$7,955.29

$2,386.59

The Story

PRODUCT INFORMATION

01. FRAME Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube

01A. FRAME One-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Optional MIND System (EU

02. FORK Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound


03. REAR SHOCK Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings


04. SHOCK SETTINGS medium compression, medium rebound, air volume spacer 0.2
05. HEADSET Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing


06. STEM Onoff Krypton FG 30mm, CNC, 31.8mm barbore


07. HANDLEBAR Onoff Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore


08. GRIPS Onoff Desert, 1lock-on, 135mm


09. SEATPOST Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm


10. SADDLE FIZIK Terra Aidon X5 145mm


11. FRONT BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


12. REAR BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


13. BRAKE LEVER Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust


14. FRONT HUB Mavic, Boost 15x110mm, IS 6 bolts


15. REAR HUB Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts


16. FRONT TIRE Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead


17. REAR TIRE Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead


18. CRANKSET Race Face Aeffect ebike, 165mm


19. RINGS Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD


20. PEDALS N/A


21. CHAIN Sram NX Eagle, 12s, Powerlock


22. REAR DERAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1


23. CASSETTE Sram XG-1230, 11-50T, 12s


24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System


25. BATTERY Bosch Powertube 750Wh


26. DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller


27. DERAILLEUR HANGER Mondraker M068

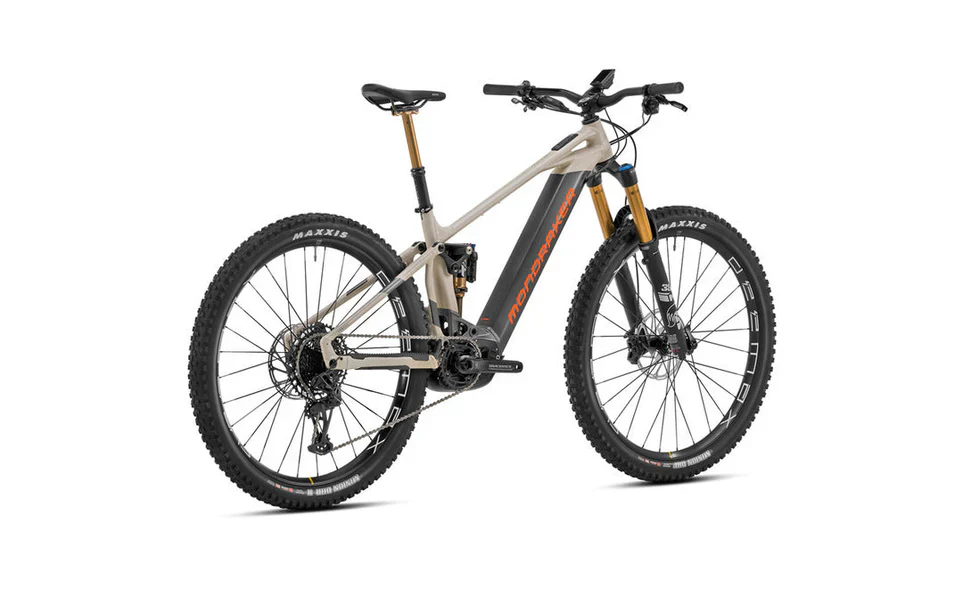

Mondraker Crafty Carbon RR - Carbon/Grey/Orange - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Mondraker Crafty Carbon RR - Carbon/Grey/Orange - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

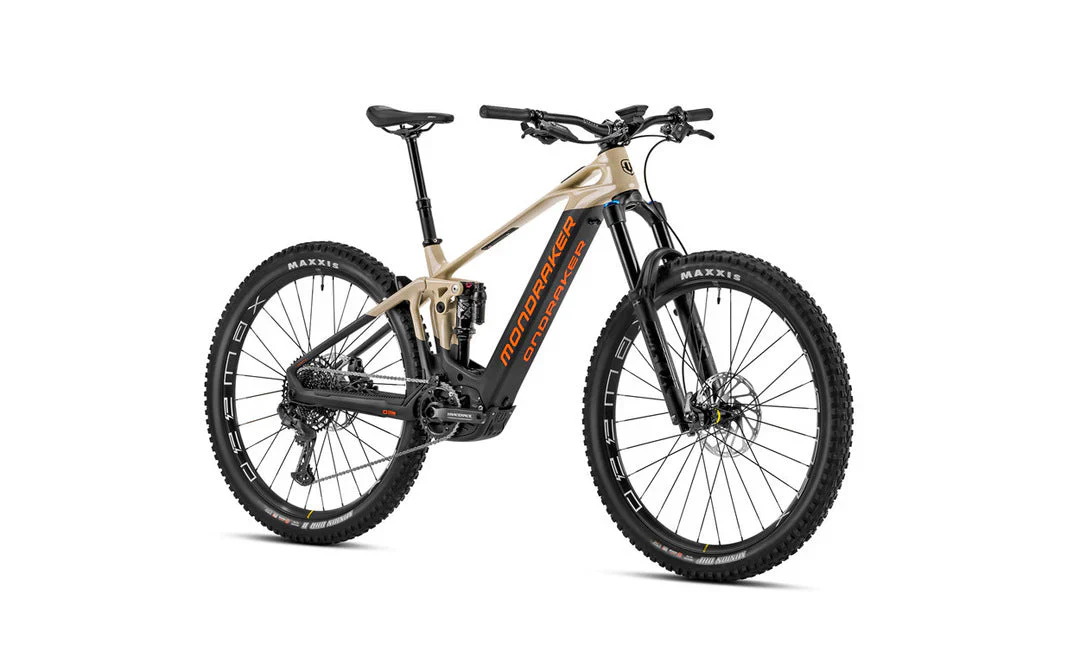

Mondraker Crafty Carbon RR - Carbon/Grey/Orange - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

PRODUCT INFORMATION

01. FRAME Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube

01A. FRAME One-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Optional MIND System (EU

02. FORK Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound


03. REAR SHOCK Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings


04. SHOCK SETTINGS medium compression, medium rebound, air volume spacer 0.2
05. HEADSET Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing


06. STEM Onoff Krypton FG 30mm, CNC, 31.8mm barbore


07. HANDLEBAR Onoff Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore


08. GRIPS Onoff Desert, 1lock-on, 135mm


09. SEATPOST Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm


10. SADDLE FIZIK Terra Aidon X5 145mm


11. FRONT BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


12. REAR BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


13. BRAKE LEVER Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust


14. FRONT HUB Mavic, Boost 15x110mm, IS 6 bolts


15. REAR HUB Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts


16. FRONT TIRE Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead


17. REAR TIRE Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead


18. CRANKSET Race Face Aeffect ebike, 165mm


19. RINGS Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD


20. PEDALS N/A


21. CHAIN Sram NX Eagle, 12s, Powerlock


22. REAR DERAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1


23. CASSETTE Sram XG-1230, 11-50T, 12s


24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System


25. BATTERY Bosch Powertube 750Wh


26. DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller


27. DERAILLEUR HANGER Mondraker M068
