Description:

The first model in the line-up is the NEAT R, with a Fox 36 29 Float GRIP EVOL Performance fork, SRAM GX Eagle transmission, SRAM G2 R brakes, ONOFF Pija seatpost of up to 200mm travel (depending on size) and Mavic E-Crossride 29 wheels.

Specification:

01. FRAME	Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery.
02. REAR SHOCK	Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
03. SHOCK SETTINGS	Medium compression, medium rebound, air volume spacer 0.4
04. FORK	Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
05. HEADSET	Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing
06. STEM	Onoff Krypton FG 30mm, CNC, 31.8mm diameter
07. HANDLEBAR	Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm diameter
08. GRIPS	Onoff Desert, single lock-on, 135mm
09. SEATPOST	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
10. SADDLE	Fizik Terra Aidon Slim X5
11. FRONT BRAKE	Sram G2 R, 4-piston caliper, Centerline 200mm 6 bolt one-piece rotor, organic pads
12. REAR BRAKE	Sram G2 R, 4-piston caliper, Centerline 200mm 6 bolt one-piece rotor, organic pads
13. BRAKE LEVER	Sram G2 R, tool-free reach adjust, lever pivot bushings
14. RIMS	Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
15. SPOKES	Mavic J-bend double butted, contactless lacing
16. FRONT HUB	Mavic, Boost 15x110mm, 6-bolt
17. REAR HUB	Mavic, Boost 12x148mm, ID360 Ratched system, 6-bolt, HG freehub
18. FRONT TYRE	Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
19. REAR TYRE	Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
20. CRANKSET	E.13 E*Spec Plus,, S/M: 165mm L/XL: 170mm
21. RINGS	Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
22. CHAIN	Sram NX Eagle, 12s, Powerlock
23. REAR DERAILLEUR	Sram GX Eagle 1x12
24. SHIFT LEVER	Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
25. CASSETTE	Sram PG-1230, 11-50T, 12s
26. MOTOR	TQ HPR-50
27. BATTERY	TQ HPR-50 360Wh integrated and removable
28. DISPLAY	TQ HPR display V01
29. DERAILLEUR HANGER	Sram UDH
30. OTHERS	Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version
31. MAX RIDER WEIGHT	150 kg
32. SIZES	S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Mondraker E-Bikes

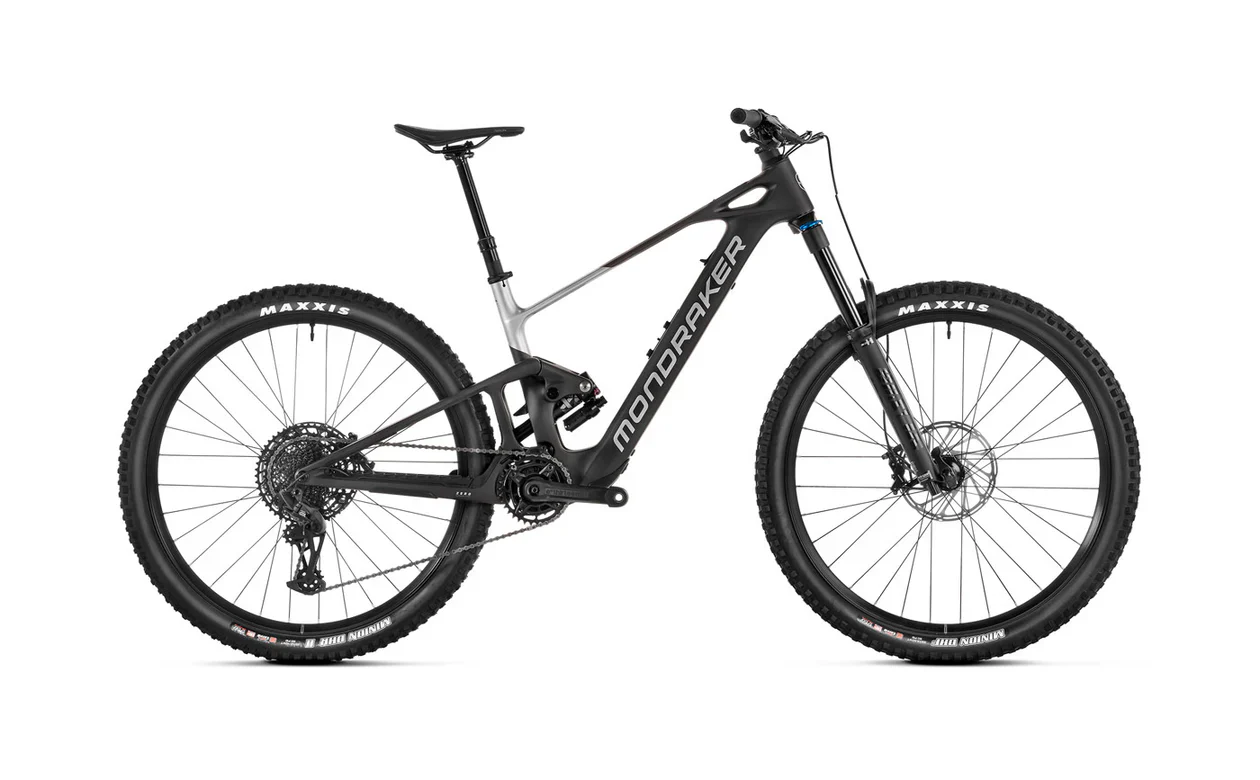

Mondraker Neat R Carbon Silver/Brnz
