Specifications:

FRAME
Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5”–1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts

FORK
RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset

REAR SHOCK
RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm

RIMS
WTB ST i30 TCS, 30mm inner width, 32h, tubeless ready

HUBS

Front: Shimano TC500, 15x110mm thru-axle

Rear: Shimano TC500, 12x148mm thru-axle, centerlock
SPOKES
DT Swiss Champion 2.0

TYRES

Front: Continental Kryptotal-F, 29x2.4", Enduro Soft, Black, Foldable

Rear: Continental Kryptotal-R, 29x2.4", Enduro Soft, Black, Foldable

CRANK
FSA Bosch E-bike with 55mm chainline, 160mm, 34T

CHAIN
Shimano LG500, LinkGlide, 11-speed

REAR COGS (CASSETTE)
Shimano CUES LG400, LinkGlide, 11-50, 11-speed

REAR DERAILLEUR
Shimano CUES U6000, LinkGlide

SHIFTERS
Shimano CUES U6000, 11-speed, LinkGlide

HANDLEBAR
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm

GRIPS
Cannondale TaperRidge

STEM
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°

HEADSET
Acros ICR, 1.5" to 1.8", sealed bearings

BRAKES
Shimano MT520 4-piston hydraulic disc

Rotors: 203mm RT64 (front & rear)

BRAKE LEVERS
Shimano MT501 hydraulic disc

E-BIKE DISPLAY

Bosch Purion 200
E-BIKE BATTERY
Bosch PowerTube, 800Wh

E-BIKE CHARGER
Bosch 4A

E-BIKE DRIVE UNIT
Bosch Performance Line CX

SADDLE
WTB Silverado Medium

SEATPOST
Cannondale DownLow Dropper, internal routing, 34.9

150mm (S)

170mm (M)

200mm (L)

230mm (XL)

ACCESSORIES & EXTRAS
Tubeless Valve Stems, pre-installed front light cable, Bosch PowerMore range extender compatible

Mid Drive E-Bikes

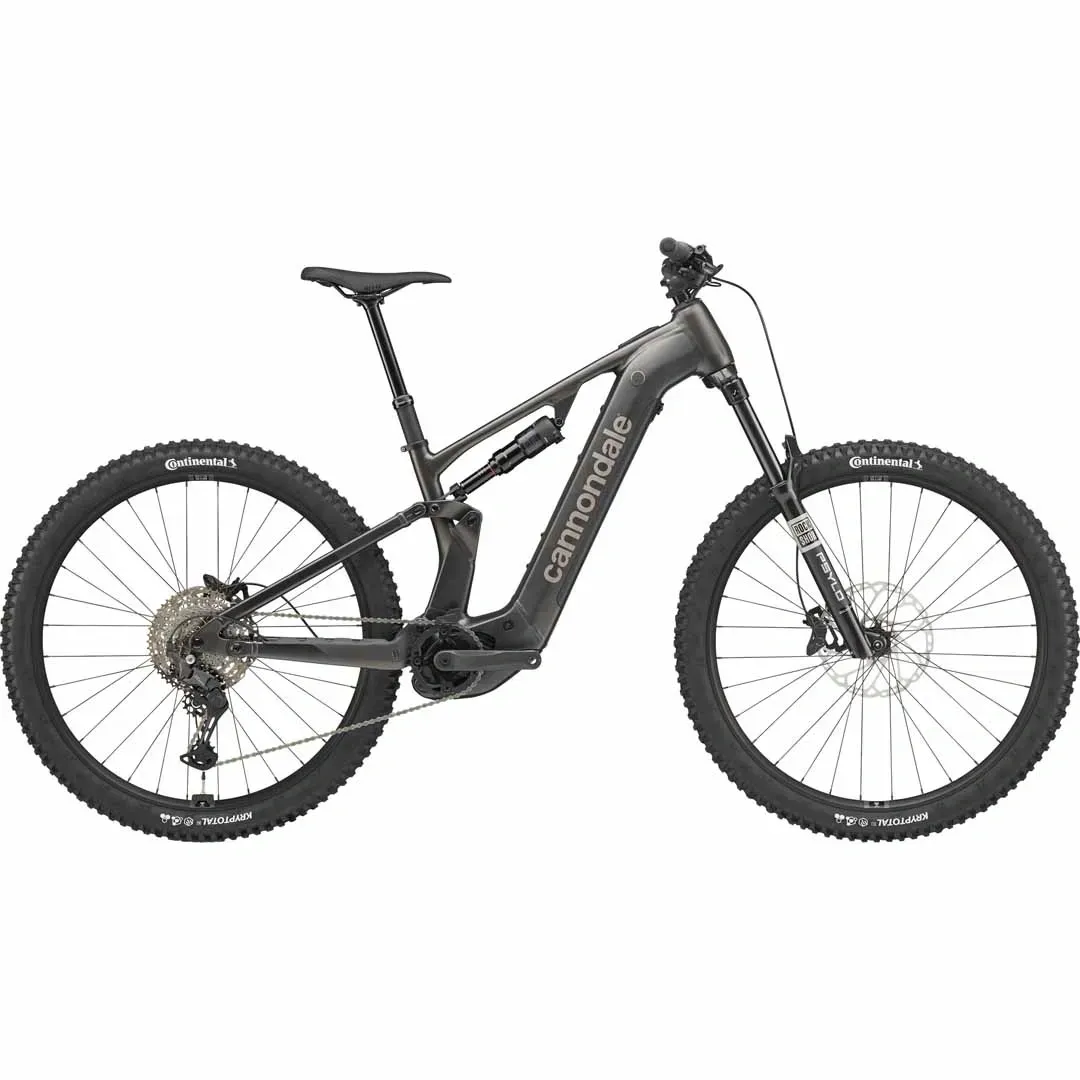

Cannondale Moterra 3 2025 EMTB (Obsidian)
